| CY Hydraulic Clamshell Buckets |
| |
 |
| |

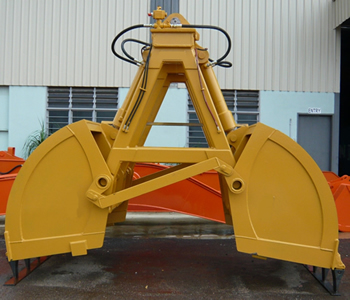

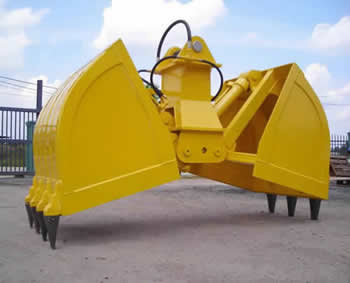

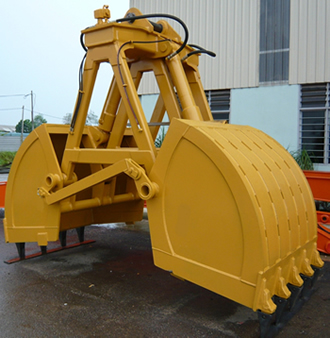

The CY series hydraulic clamshell bucket is designed to be attached onto an excavator. The dual hydraulic cylinders/rams mounted on the outer rim of the bucket provide excellent digging force.
The inner side of the bucket has a smooth surface for easy unloading of high viscosity material such as mud and clay, while the outer layer is reinforce with additional layer of wear strips. The bowl's radius has been optimized to match with the locus of the hydraulic cylinder/ram to deliver consistence full load for maximum productivity.
|
| |
| |

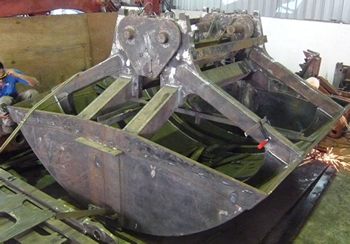

Clamshell under construction
|

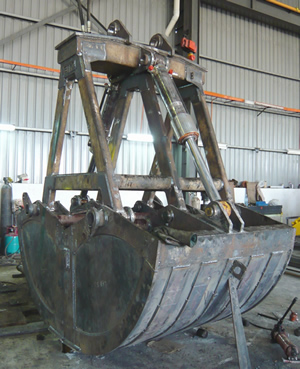

Clamshell under construction
|
| |
 |
| |
| |
CY Hydraulic Clamshells 2008 Pricing
| Capacity |
Price |
| 2.6 cubic yard |
$ 25,190 |
| 3.9 cubic yard |
$ 30,690 |
| 5.2 cubic yard |
$ 42,900 |
| 6.5 cubic yard |
$ 46,090 |
|
| |
| |
CY Clamshell Specifications
| Model |
No. of
Cylinder |
Heaped Capacity
(cu yd) |
Approx. Weight
(lbs) |
| CY10HD |
2 |
1.30 |
2,720 |
| CY15HD |
2 |
1.95 |
3,190 |
| CY20HD |
2 |
2.60 |
3,960 |
| CY25HD |
2 |
3.25 |
5,335 |
| CY30HD |
2 |
3.90 |
6,800 |
| CY35HD |
2 |
4.55 |
7,920 |
| CY40HD |
2 |
5.20 |
9,620 |
|
| |
| |
 |
 |
