Bodine Grapples

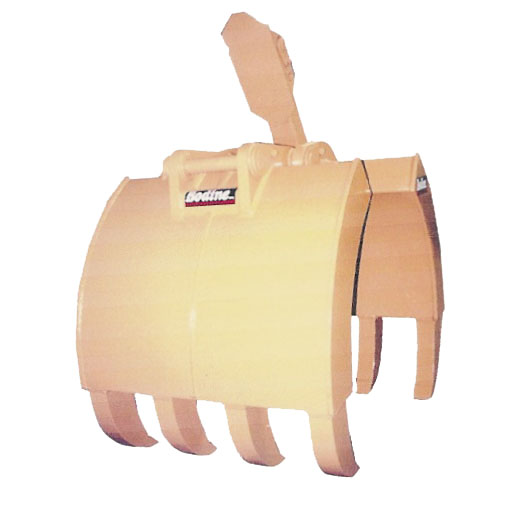

Bodine grapple

Bodine Grapple

**210, 215 Series**
Excavator size of 25,000-45,000 lbs
Application	Grapple Model	Approx. Weight	Number of Tines	Overall Width	Tine Width	Tine Length	Open Span
General Purpose	G-210	1,600 lbs	2 x 3	38"	1.5"	14"	100"
General Purpose	G-210	1,675 lbs	3 x 4	38"	1.5"	14"	100"
General Purpose LT	G-210	1,850 lbs	3 x 4 LT	38"	1.5"	20"	100"
General Purpose	G-215	2,200 lbs	2 x 3	38"	3"	14"	100"
General Purpose	G-215	2,300 lbs	3 x 4	38"	2.5"	14"	100"
General Purpose LT	G-215	2,500 lbs	3 x 4 LT	38"	2.5"	20"	112"
Open Web THUMB	OW-215	700 lbs	3	25.25"	1"
Heavy Duty Demolition	HDDM-215	2,600 lbs	2 x 3	38"	3"	14"	100"
Wood Waste/Tire	WTG-215	2,300 lbs	3 x 4 LT	38"	2.5"	20"	112"
Refuse	RG-215	2,600 lbs	4 x 5	60"	3"	14"	100"
Refuse Long Tines	RG-215	2,700 lbs	4 x 5 LT	60"	2.5"	20"	112"

**225 Series**
Excavator size of 45,000-70,000 lbs
Application	Grapple Model	Approx. Weight	Number of Tines	Overall Width	Tine Width	Tine Length	Open Span
General Purpose	G-225	3,200 lbs	2 x 3	38"	4"	14"	116"
General Purpose	G-225	3,400 lbs	3 x 4	38"	4"	14"	116"
General Purpose LT	G-225	3,800 lbs	3 x 4 LT	38"	4"	20"	128"
Open Web THUMB	OW-225	700 lbs	3	25.25"	1"
Heavy Duty THUMB	HDTH-225	1,700 lbs	4	29.75"	1.5"
Heavy Duty Demolition	HDDM-225	3,700 lbs	2 x 3	38"	4"	14"	118"
Heavy Duty Demolition	HDDM-225	3,900 lbs	3 x 4	38"	4"	14"	118"
Heavy Duty Demolition	HDDM-225	4,300 lbs	3 x 4 LT	38"	4"	20"	130"
Severe Duty Demolition	SDDM-225	4,200 lbs	2 x 3	38"	4"	14"	118"
Severe Duty Demolition	SDDM-225	4,400 lbs	3 x 4	38"	4"	14"	118"
Severe Duty Demolition	SDDM-225	4,800 lbs	3 x 4 LT	50"	4"	20"	130"
Wood Waste/Tire	WTG-225	3,400 lbs	3 x 4	38"	4"	20"	128"
Refuse	RG-225	4,400 lbs	4 x 5	60"	4"	14"	116"
Refuse Long Tines	RG-225	4,900 lbs	4 x 5 LT	60"	4"	20"	128"

**235 Series**
Excavator Size of 70,000-125,000 lbs
Application	Grapple Model	Approx. Weight	Number of Tines	Overall Width	Tine Width	Tine Length	Open Span
General Purpose	G-235	4,200 lbs	2 x 3	50"	6"	14"	116"
General Purpose	G-235	4,350 lbs	3 x 4	50"	4"	14"	116"
General Purpose LT	G-235	4,650 lbs	3 x 4 LT	50"	4"	20"	128"
Heavy Duty THUMB	HDTH-235	2,000 lbs	4	34.25"	2"
Heavy Duty Demolition	HDDM-235	4,800 lbs	2 x 3	50"	6"	14"	118"
Heavy Duty Demolition	HDDM-235	4,950 lbs	3 x 4	50"	4"	14"	118"
Heavy Duty Demolition	HDDM-235	5,150 lbs	3 x 4 LT	50"	4"	20"	130"
Severe Duty Demolition	SDDM-235	5,400 lbs	2 x 3	50"	6"	14"	118"
Severe Duty Demolition	SDDM-235	5,550 lbs	3 x 4	50"	4"	14"	118"
Severe Duty Demolition	SDDM-235	5,750 lbs	3 x 4 LT	50"	4"	20"	130"
Wood Waste/Tire	WTG-235	4,300 lbs	3 x 4 LT	50"	4"	20"	128"
Refuse	RG-235	4,800 lbs	4 x 5	60"	4"	14"	118"
Refuse Long Tines	RG-235	5,300 lbs	4 x 5 LT	60"	4"	20"	128"

**245 Series**
Excavator size of 125,000 + lbs
Application	Grapple Model	Approx. Weight	Number of Tines	Overall Width	Tine Width	Tine Length	Open Span
Severe Duty Demolition	SDDM-245	5,900 lbs	2 x 3	50"	6"	14"	118"
Severe Duty Demolition	SDDM-245	6,150 lbs	3 x 4	50"	4"	14"	118"
Severe Duty Demolition	SDDM-245	6,350 lbs	3 x 4 LT	50"	4"	20"	130"
Refuse	RG-245	5,500 lbs	4 x 5	60"	4"	14"	118"
Refuse Long Tines	RG-245	6,000 lbs	4 x 5 LT	60"	4"	20"	128"
