YSR Series Shears





The YSR Series Shears are hydraulic rotating shears. The pricing and specifications for the various models are listed below.

Additional information on these shears will be displayed when it becomes available. Please contact the Ransome sales office if there are any questions regarding these attachments.

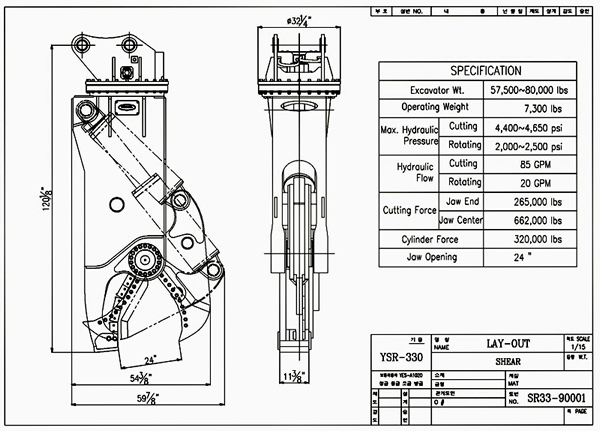

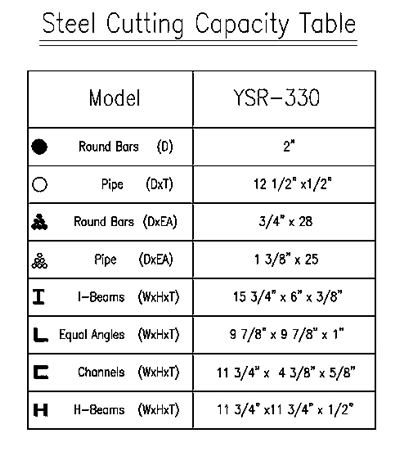

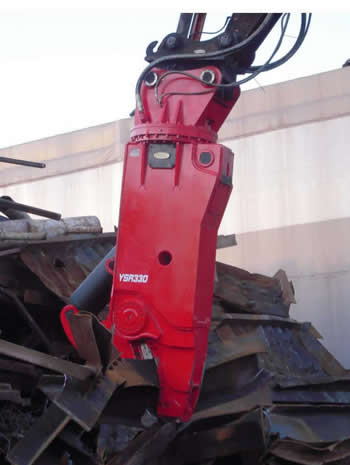

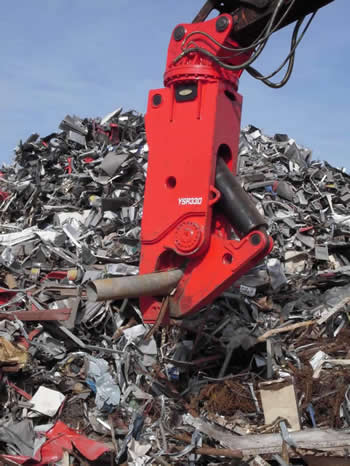

Model YSR-330
Click on the photo to view the YSR330 video

YSR-330
YSR-330            YSR-330

YSR-330

YSR-330

YSR-330

* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

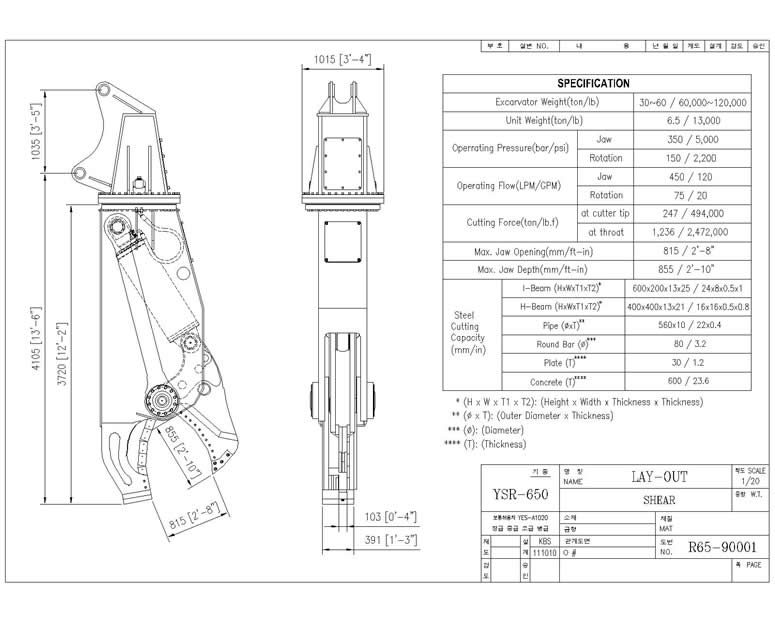

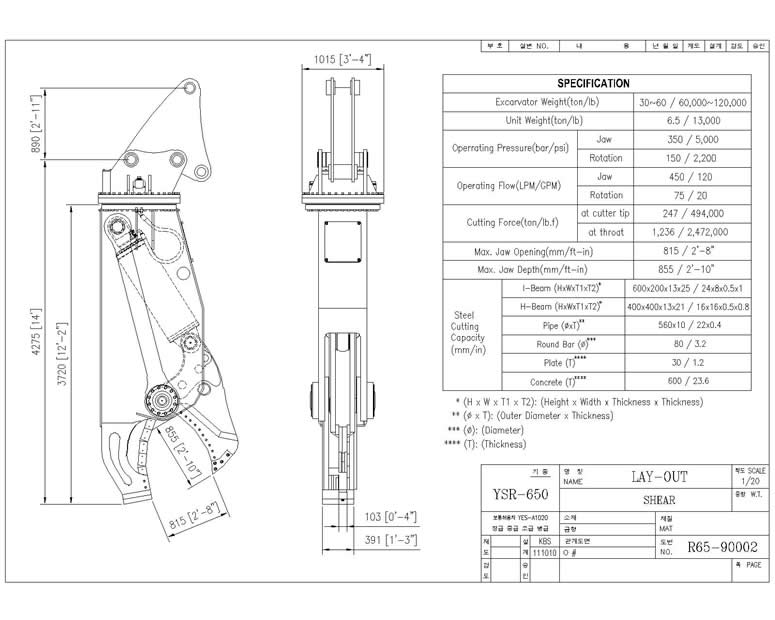

Model YSR-650
YSR-650            YSR-650

YSR-650
YSR-650

YSR-650            YSR-650

YSR-650

* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

YSR280            YSR280

YSR series          YSR series

YSR series          YSR series

YSR series          YSR series








Single Cylinder Type Hydraulic Shears:

· This Single Cylinder Type Hydraulic Shear is newly designed and developed for increasing cutting power and minimizing the possible problems of two cylinder type hydraulic shears.
· Cutting blades are easy to replace.
· Cutting blades gap is simple to adjust.
· Strong jaws made of special steel "HARDOX400" provide long lasting life.
· Cutting blades are made of special steel "HARDOX400" and are strong enough to cut steels.
· Opening and depth are larger than two cylinder types.
· Increase of 30% to 40% in cutting force.
· 360 degree hydraulic rotation.
· Hydraulic Rotation, Manual Rotation or No Rotation is available.

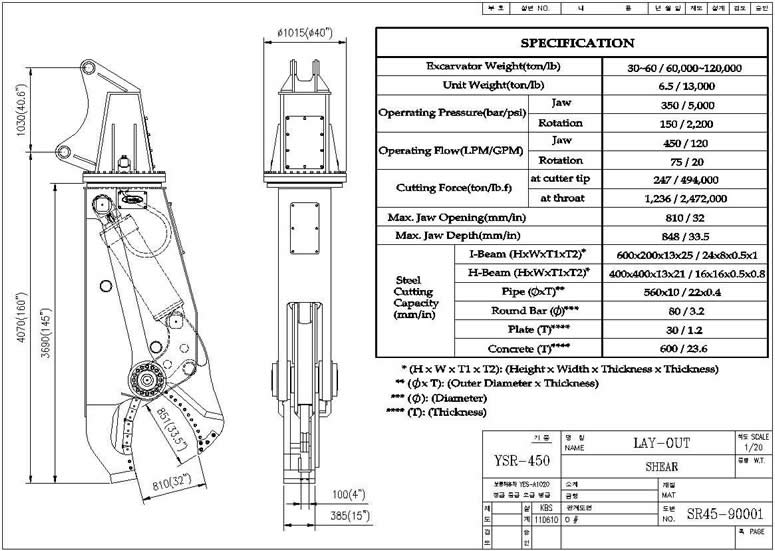

YSR450 specs



YSR Series       2007 Pricing
Model Cyl Operating Weight Jaw Opening Cutting Force at Center Price
YSR050 S 1,650 lbs 13" 140,000 lbs $ 24,000
YSR120 S 2,200 lbs 15 1/8" 180,000 lbs $ 29,000
YSR160D D 2,640 lbs 15" 185,000 lbs $ 35,000
YSR160 S 2,800 lbs 17 7/8" 201,000 lbs $ 35,000
YSR220 S 4,300 lbs 20 7/8" 408,000 lbs $ 49,000
YSR220D D 4,200 lbs 19 1/8" 291,000 lbs $ 49,000
YSR280D D 6,400 lbs 23 7/8" 400,000 lbs $ 59,000
YSR330         $ 69,000


YSR320 at work YSR320 at work

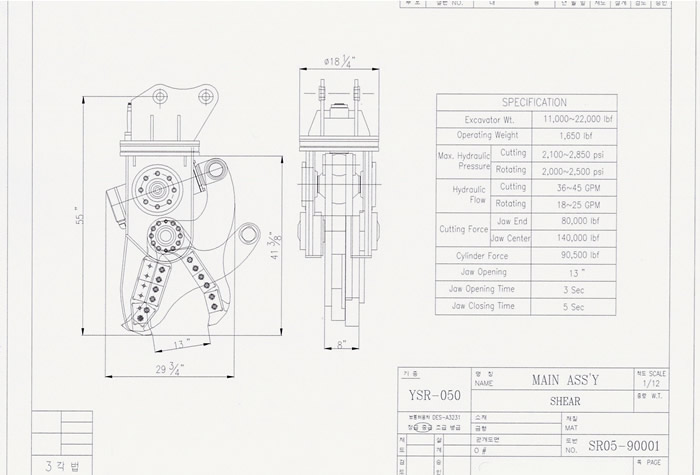

Model YSR-050


YSR050 at work    YSR050 at work

YSR050 at work    YSR050 at work

YSR050 at work    YSR050 at work

YSR050 at work    YSR050 at work




Model YSR-120




Model YSR-160




Model YSR-160D
YSR-160D
YSR280D (2-cylinder) at work YSR280D (2-cylinder) at work




Model YSR-220
YSR-220

YSR220 mounted on Volvo290 YSR220 mounted on Volvo290






Model YSR-220D
YSR-220D
YSR280D (2-cylinder) at work YSR280D (2-cylinder) at work

YSR280




Model YSR-280D
YSR-280D
YSR Series
