| Hydraulic Clamshell Buckets |
 |

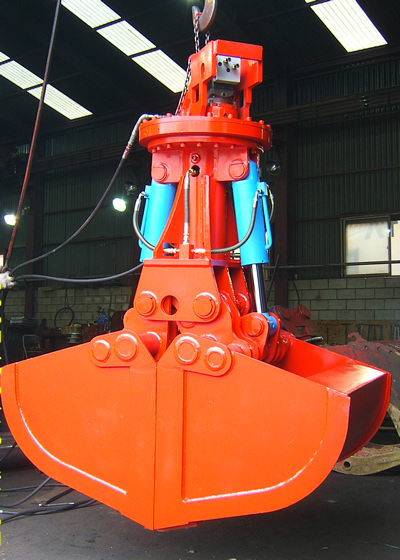

YC800 Clamshell
|

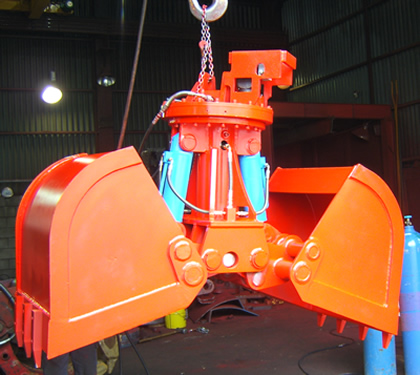

YC800 Clamshell
|
YC2000 Clamshell
|
YC2000 Clamshell
|
| |
YC6000 Clamshell
|
| |

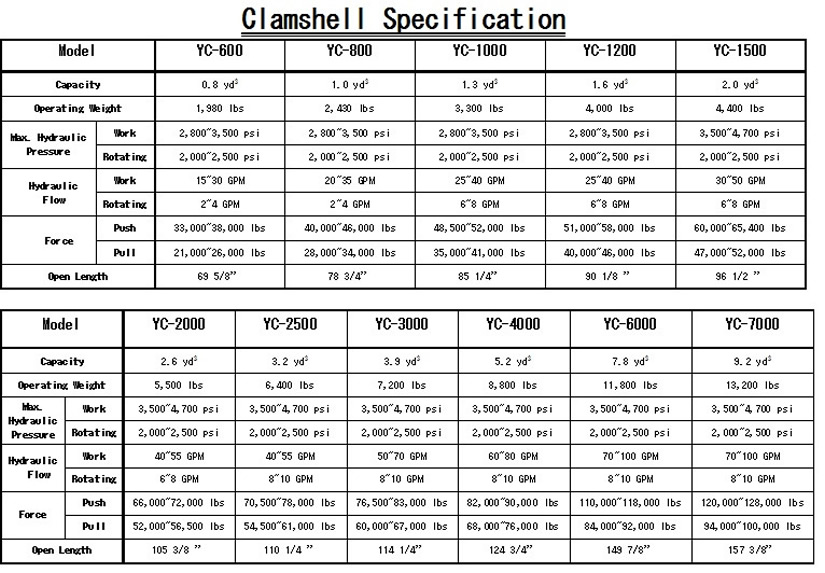

Clamshell Specification
|
 |
| |

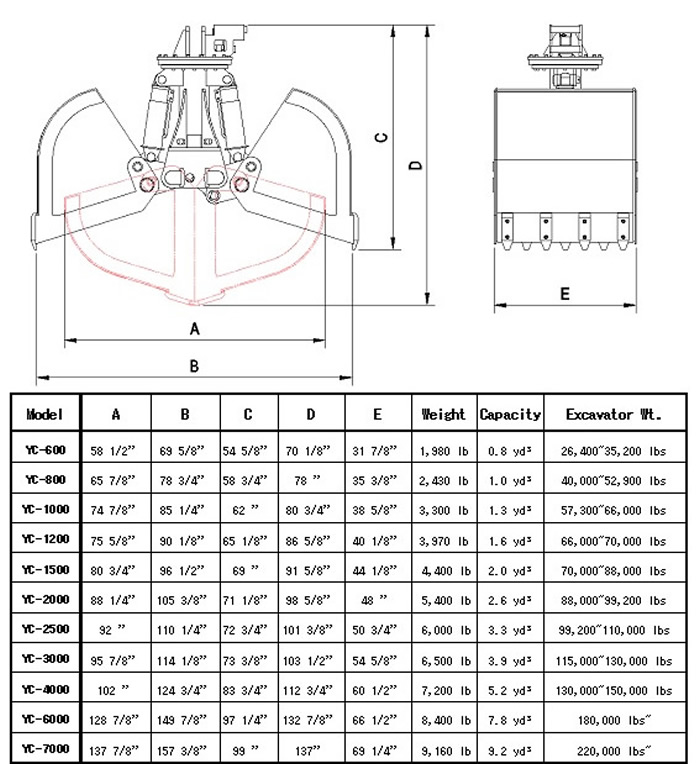

Specifications
| Model |
A |
B |
C |
D |
E |
Weight |
Capacity |
Excavator Wt |
| YC-500 |
58 1/2" |
69 5/8" |
54 5/8" |
70 1/8" |
31 7/8" |
1980 lb |
0.7 CBY |
35,200-44,000 lb |
| YC-800 |
65 7/8" |
78 3/4" |
58 3/4" |
78" |
35 3/8" |
2430 lb |
1.0 CBY |
44,000-53,000 lb |
| YC-1000 |
74 7/8" |
85 1/4" |
62" |
80 3/4" |
38 5/8" |
3300 lb |
1.3 CBY |
53,000-62,000 lb |
| YC-1200 |
75 5/8" |
90 1/8" |
65 1/8" |
86 5/8" |
40 1/8" |
3970 lb |
1.6 CBY |
66,000-75,000 lb |
| YC-1500 |
80 3/4" |
96 1/2" |
69" |
91 5/8" |
44 1/8" |
4400 lb |
2.0 CBY |
66,000-75,000 lb |
| YC-2000 |
88 1/4" |
105 3/8" |
71 1/8" |
98 5/8" |
48" |
5400 lb |
2.6 CBY |
75,000-83,800 lb |
| YC-2500 |
92" |
110 1/4" |
72 3/4" |
101 3/8" |
50 3/4" |
6000 lb |
3.3 CBY |
75,000-83,800 lb |
| YC-3000 |
95 7/8" |
114 1/8" |
73 3/8" |
103 1/2" |
54 5/8" |
6500 lb |
3.9 CBY |
88,200-99,200 lb |
| YC-4000 |
102" |
124 3/4" |
83 3/4" |
112 3/4" |
60 1/2" |
7200 lb |
5.2 CBY |
88,200-99,200 lb |
| YC-6000 |
128 7/8" |
149 7/8" |
97 1/4" |
132 7/8" |
66 1/2" |
8400 lb |
7.8 CBY |
110,200- lb |
| YC-7000 |
137 7/8" |
157 3/8" |
99" |
137" |
69 1/4" |
9160 lb |
9.2 CBY |
110,200- lb |
 |
| Clamshell Buckets: |
| |
| · Clamshell Buckets are used to handle, load and unload industrial wastes, grains, sands, rocks and so forth in addition to digging and dredging activities. |

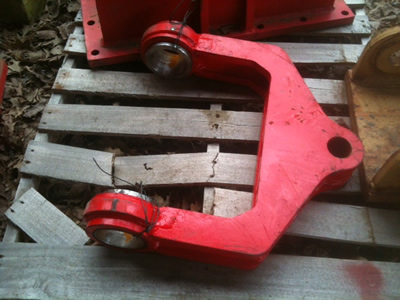

| · The clamshell bucket can be mounted on heavy equipment such as a hydraulic excavator or crane (by hangar or bracket). |
| · Special designed teeth are equipped on the cutting edge to provide high strength and longer life. |
| · Customized sizes and taylor made designs are available in accordance with the customer's requirement. |

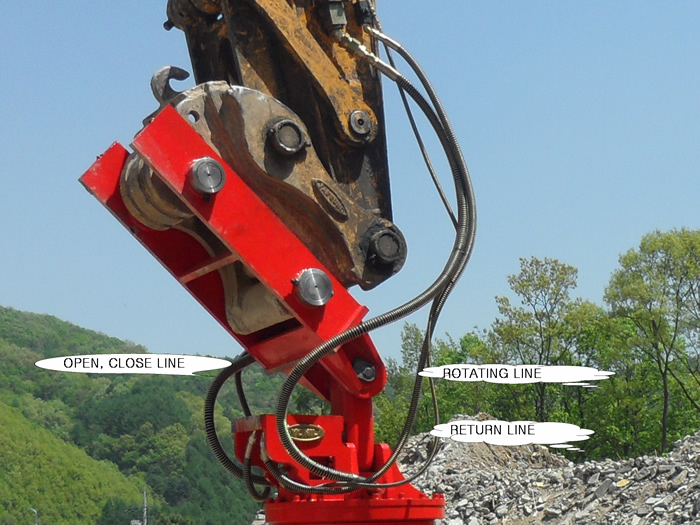

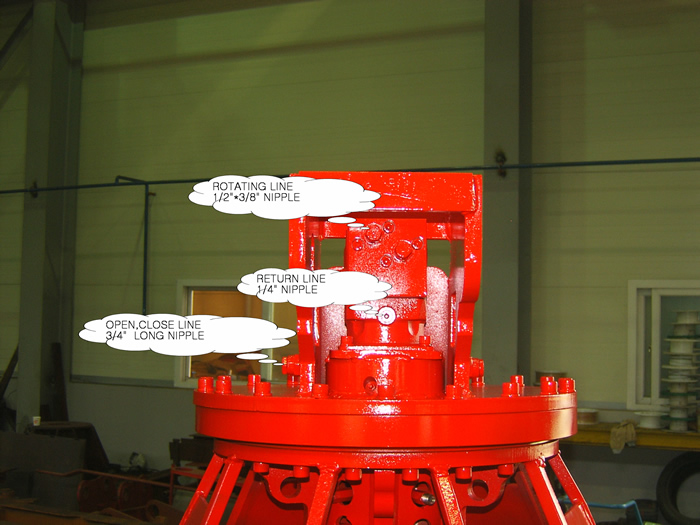

| · Hydraulic Rotation, Manual Rotation or No-Rotation is available. |
| |

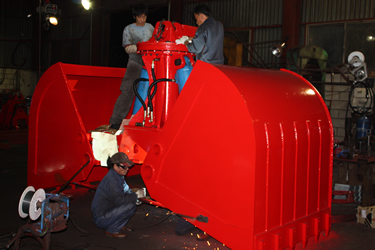

YC6000 Clamshell
|
| |
December 2008 Pricing (fixed model only)
| Model |
Capacity |
Price |
| YC500 |
0.7 CBY |
$ 13,400 |
| YC800 |
1.0 CBY |
$ 15,080 |
| YC1000 |
1.3 CBY |
$ 17,525 |
| YC1200 |
1.6 CBY |
$ 21,825 |
| YC1500 |
2.0 CBY |
$ 24,425 |
| YC2000 |
2.6 CBY |
$ 27,290 |
| YC2500 |
3.3 CBY |
$ 31,260 |
| YC3000 |
3.9 CBY |
$ 33,070 |
| YC4000 |
5.2 CBY |
$ 40,410 |
| YC6000 |
7.8 CBY |
$ 54,350 |
| YC7000 |
9.2 CBY |
$ 66,040 |
| NOTE: There is an additional charge for rotation. |
| |
| |
| * * * * * * * * * * * * * * * * * * * * * * * * * |

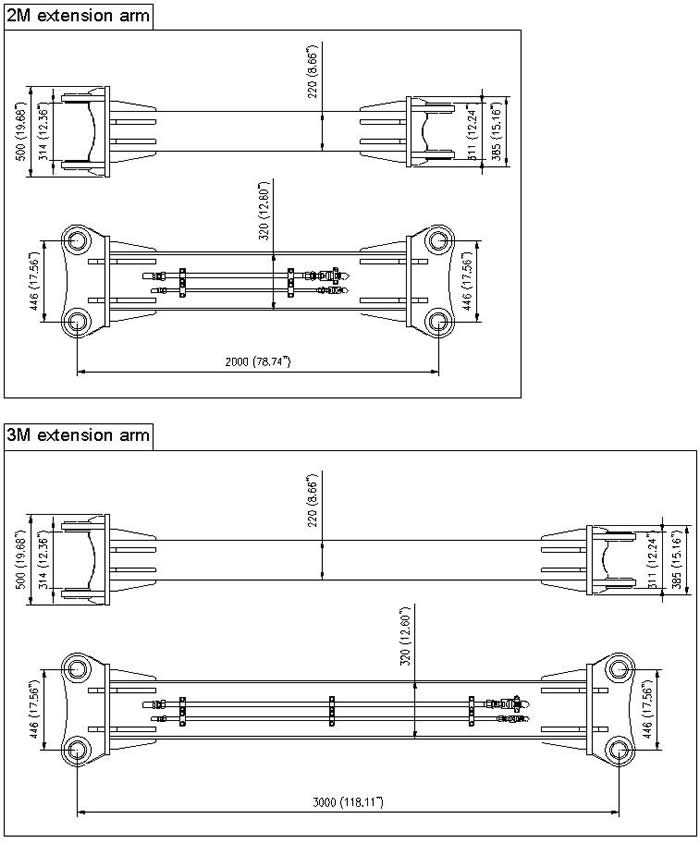

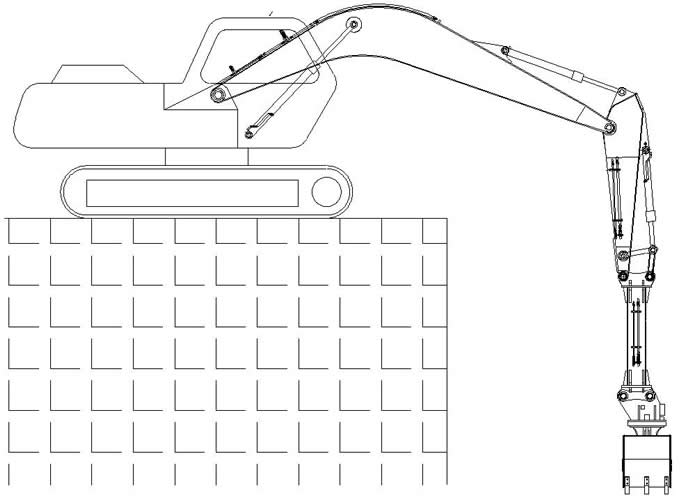

Extendable telescoping attachment extension |
 |
| * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
| |
| |
 |
| Ransome Equipment Sales, LLC |
| 5118 Church Road · Mt. Laurel · NJ · 08054 |
| Toll Free Phone: 888-726-7863 · Phone: 856-778-4070 · Fax: 856-778-4249 |
| E-mail: sales@ransome-equip.com |
|
