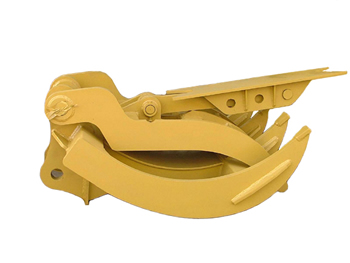

GG250 Grapple GG250 Grapple
GG250 Grapple
Specifications      2006 Pricing
Gripper Model Bottom Width Top Width Maximum Opening Weight Tines Tine Thickness Price
GG250 29" 46" 87" 2,600 lbs 3 x 4 1.5" $ 5,900

·  The GG250 excels at land clearing, house demolition and scrap applications. It can be set up for most excavators in the 40-65K weight range.
·  All grapples include mounting pad and stiff arm package with pad, pins, arm assembly and sleeve assembly.
·  The tines are constructed with lateral gussets, wear tips on the moving side, and square-tube box construction joining each tine together.
·  Since we manufacture these grapples, we can customize any widths, lengths, tine thickness, or number of tines to meet your needs.
·  When a grapple is ordered from the factory specifically for your machine, it can be constructed to be used as a complete grapple, or as 1/2 of a bucket/thumb combination.
·  Mounting dimensions for the grapple can also be flexible to be moved from one machine to another, when specified in advance.
