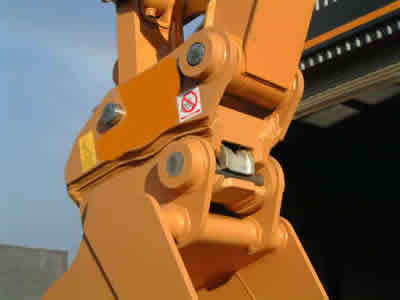

The Great Variable Center Quick Hitch picks up on the widest range of attachments of any hitch on the market today, including CAT, CASE, JCB, HITACHI, KOBELCO, DAEWOO, KOMATSU, etc. and can be used to pick up attachments in reverse configuration. The unique design will compliment the machine's aesthetics and performance. The hitch locks on the front pin for better visibility and safety. The unique safety features, which fully conform to EN Safety Regulations, incorporates a Hydraulic Check Valve, which in the unlikely event of hydraulic failure, is backed up by a Mechanical Locking System, preventing accidental release of any attachment. The Variable Center Quick Hitch maximizes performance, durability and safety. |
| Benefits: |
| · Less machine downtime |
| · One person attachment changeover |
| · No attachment modifications necessary |
| · Better operator working conditions |
| · Greater machine productivity |
| · Greater machine/attachment utilization |
| Model | Pin Diameter | Coupler Weight (lbs) | Coupler Weight (kgs) |
|---|---|---|---|
| QH60H | 60 | 500 | 220 |
| QH65H | 65 | 500 | 220 |
| QH70H | 70 | 770 | 340 |
| QH80H | 80 | 795 | 350 |
| QH90H | 90 | 1060 | 470 |
| QH100H | 100 | 1850 | 825 |
| Model Pin Lock |
Machine Op Weight | Tonne | Weight (lbs) | Weight (kgs) |
|---|---|---|---|---|
| QH50M | 14,000-25,000 | 6,000-11,000 | 185 | 80 |
| QH60M | 25,000-28,000 | 11,000-12,500 | 248 | 110 |
| QH65M | 25,000-28,000 | 11,000-12,500 | 248 | 110 |
| QH70M | 28,000-38,000 | 12,500-17,000 | 405 | 180 |
| QH80M | 38,000-48,000 | 17,000-21,000 | 508 | 225 |
| QH90M | 48,000-62,000 | 21,000-27,500 | 600 | 265 |
 |
