Rotating Grapples

Y-Series Rotating Grapples
(YSG, YW, YPG, YLL)



         YSG Grapple
         YSG Grapple in Action

YW Grapple
YW Series

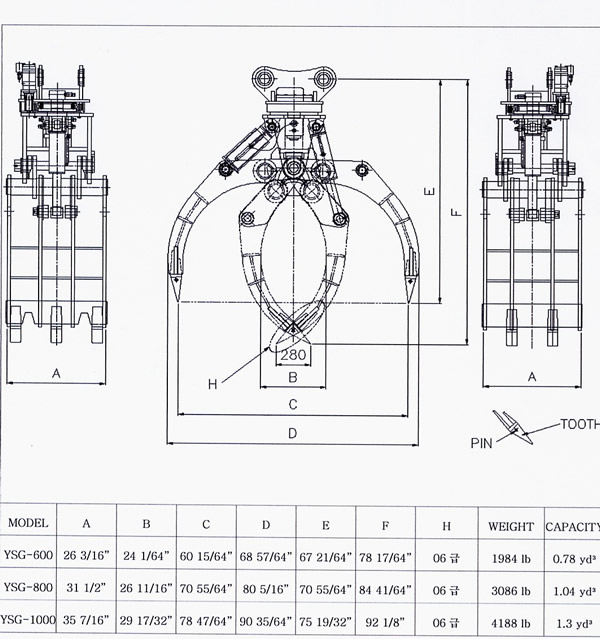

YSG Series Rotating Grapples
YSG Grapple




YSG Grapple

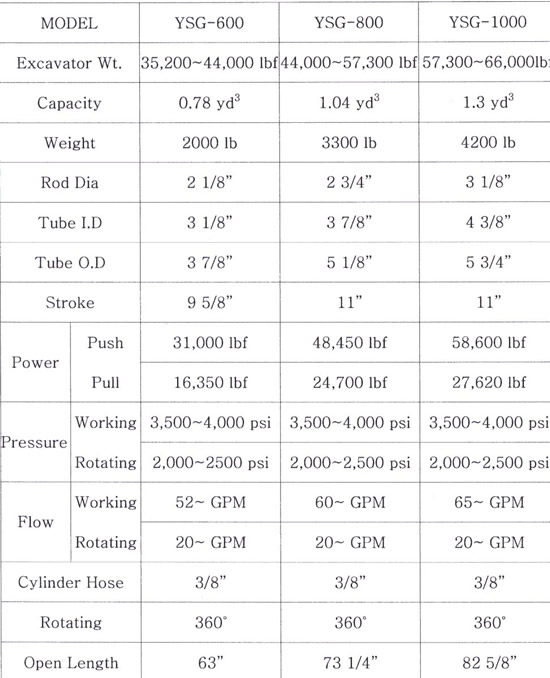

Stone Grabs:
· Stone Grabs are manufactured strong enough to handle stones and steel scraps at quarry, landscaping and bank construction.
· Detachable teeth made of special steel are equipped at edge of each grabs.
· Hydraulic Rotation, Manual Rotation or No-Rotation is available.


YSG1000 Grapple
YSG-1000
YSG1000 Grapple
YSG-1000
YSG1000 Grapple
YSG-1000


YSG Series      Capacity / Pricing
Model Capacity Price Steel Plates
for Clamshell
YSG300 0.45 cu yds P.O.R.
YSG450 0.58 cu yds P.O.R.
YSG600 0.8 cu yds $ 14,195 Call for pricing
YSG800 1.0 cu yds $ 15,350 Call for pricing
YSG1000 1.3 cu yds $ 17,495 Call for pricing
YSG1200 1.6 cu yds $ 21,895
YSG1500 2.0 cu yds $ 26,295
YSG2000 2.6 cu yds $ 28,250
YSG2500 3.3 cu yds $ 37,695
YSG3500 4.6 cu yds $ 55,695
YSG5000 6.5 cu yds $ 78,895
YSG7000 9.2 cu yds $ 96,250
YSG10000 13.0 cu yds $ 116,450

NOTE: There is an additional charge for rotation.





Customized Stone Grapples (Model YSG800) are available but require special pricing
YSG800 Grapple        YSG800 Grapple

YSG800 Grapple

YSG800 Grapple        YSG800 Grapple
Customized Stone Grapples (Model YSG800) are available but require special pricing
*  *  *  Rotation option available at an additional charge *  *  *











* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

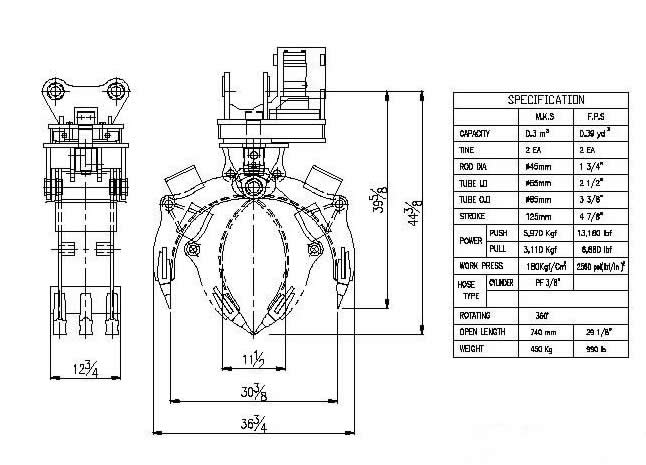

Model YSG300 Line Drawing
YSG300 Grapple


Model YSG450 Line Drawing
YSG450 Grapple


* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

Rock Handling by Orange Peel Grapple YM1000
YM1000 Orange Peel Grapple           YM1000 Orange Peel Grapple

YM1000 Orange Peel Grapple           YM1000 Orange Peel Grapple


* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *


YW Series Rotating Grapples
YW Grapple

Wood Grab Specification

YW Series      April 2010 Pricing
Model Price
YW600 $ 14,190
YW800 $ 15,325
YW1000 $ 17,490


* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *



YPG Series Rotating Grapples

Paper Grab Specification
YPG Series      2007 Pricing
Model Fixed Type Price With Rotator Price
YPG600 $ 8,350 $ 10,950
YPG800 $ 9,650 $ 12,750
YPG1000 $ 11,495 $ 14,750


* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *


YLL Series Rotating Grapples
YLL Grapple


* * * * * * * * * * * * * * * * * * * * * * * * * * * * *


Clamshell Brackets
