Orange Peel Grapples

YM800, Semi Open or Semi Enclosed
Semi Open or Semi Enclosed
YM800

YM Grapples        YM Grapples

YM Grapples        YM Grapples

YM Grapples        YM Grapples

YM Grapples



YM800 Grapple

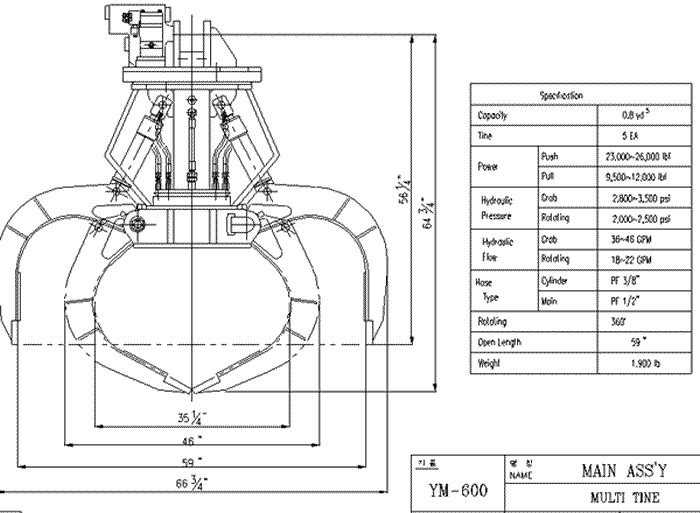

YM600, Semi-close type
YM600, Semi-close
YM600, Open type
YM600, Open Type
YM600, Close type
YM600, Close Type


orange peel grapple orange peel grapple

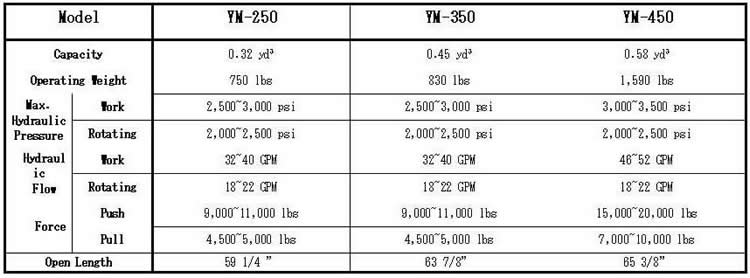

Orange Peel Grapple Specification


Orange Peel Grapple Specification



YM450 Grapple
YM450 Grapple

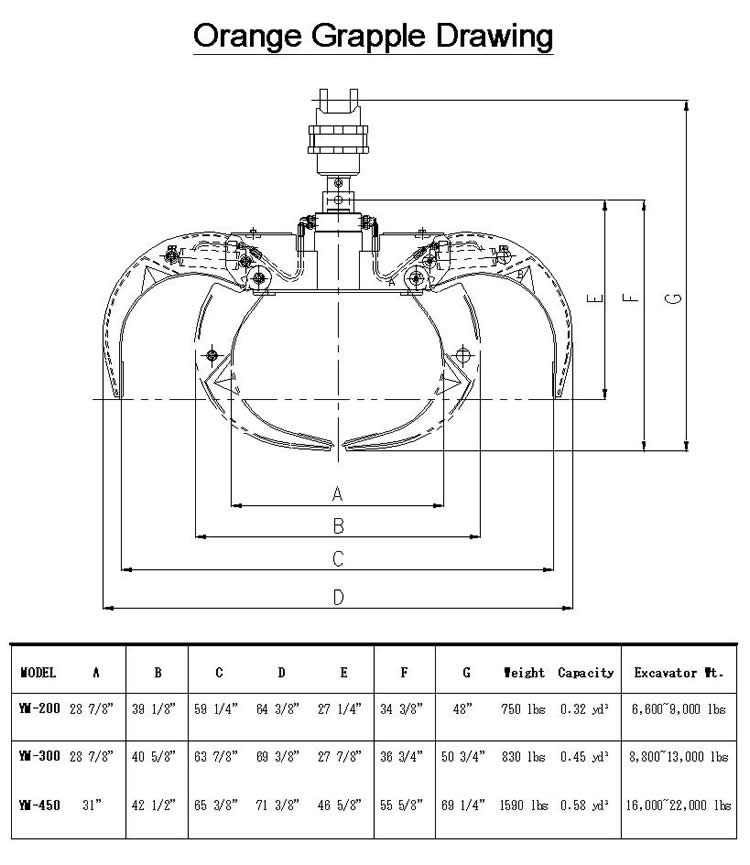

Orange Grapple Drawing

Orange Peel Grapple Specification


Orange Peel Grapple Specification


Orange Peel Grapple Specification


Orange Peel Grapple for CAT M318 Orange Peel Grapple for CAT M318

orange peel grapple

orange peel grapple


Orange Peel Grapples:

· Orange Peel Grapples are light weight, but provide strong structure and high power.
· The orange peel grapples are economically designed to handle, load and unload steel scraps, waste papers and industrial waste.
· Standard models have 5 tines, but 4 tines or 6 tines are also available for custom made as well.
· For long life, tine edges are made from special steel "HARDOX400".
· In order to protect hydraulic cylinders, protector guards are equipped as standard and cylinder rods are located to the top of the grapples.
· To secure heavy equipment, the hydraulic motor has a brake valve.
· Open-type, Semi-Closed and Closed type tines are available.
· Hydraulic Rotation, Manual Rotation or No-Rotation is available.


  March 2009 Pricing (fixed model only)
Model Tine Qty Carrier Weight Capacity - cu yd Operating Weight Price
YM200 5   0.3   660 lb $ 7,900
YM300 5   0.5   740 lb $ 8,400
YM450 5   0.6 1,300 lb $ 12,900
YM600 5 13 - 17  Ton 0.8 1,980 lb $ 14,250
YM800 5 20 - 28  Ton 1.0 2,600 lb $ 15,695
YM1000 5 28 - 30  Ton 1.3 3,100 lb $ 17,395
YM1200 5 30 - 32  Ton 1.6 3,400 lb $ 19,995
YM1500 5 32 - 40  Ton 2.0 4,080 lb $ 25,395
YM2000 5 40 - 45  Ton 2.6 6,060 lb $ 29,900
YM2500 5 45 - 50  Ton 3.3 6,840 lb $ 35,900
YM3500 5 55 - 60  Ton 4.6   $ 44,720
YM5000 5 70 - 77  Ton 6.5   $ 63,570
YM7000 5 100 -  Ton 9.2   $ 77,480
YM10000 5 150 -  Ton 13.0   $ 96,850
NOTE: There is an additional charge for rotation.


* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

Rock Handling by Orange Peel Grapple YM1000
YM1000 Orange Peel Grapple           YM1000 Orange Peel Grapple

YM1000 Orange Peel Grapple           YM1000 Orange Peel Grapple

* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *


Extendable telescoping attachment extension
extendable telescoping attachment extension
* * * * * * * * * * * * * * * * * * * * * * * * *



YM300 grapple YM300 grapple


YM300 grapple YM300 grapple

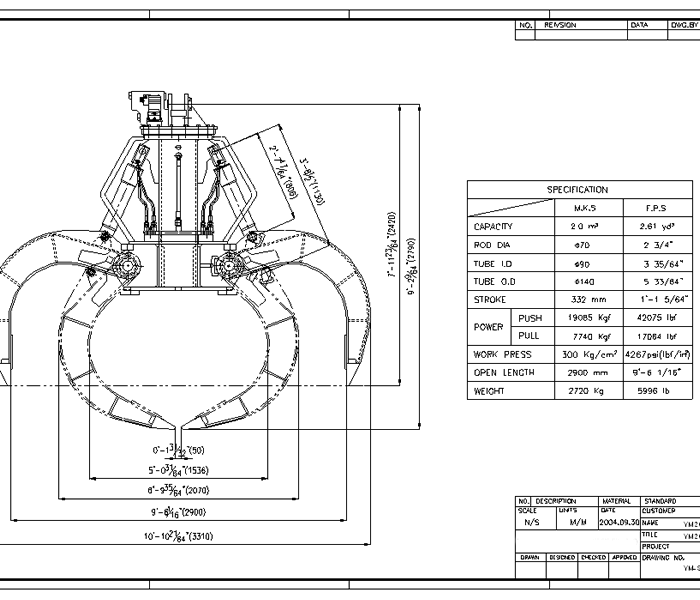

YM2000 3 Cu Yd 5-Tine
YM2000 3 Cu Yd 5-Tine

YM2000 3 Cu Yd 6-Tine
YM2000 3 Cu Yd 6-Tine



YM2500 3 Cu Yd 5-Tine
YM2500 3 Cu Yd 5-Tine



YM2500 3 Cu Yd 6-Tine
YM2500 3 Cu Yd 6-Tine



YM300
YM300 Grapple



YM450
YM450 Grapple




YM600
YM600


orange peel grapple orange peel grapple


YM800 Grapple


Extension arm with grapple

YM800 YM1000, Close Type or Fully Enclosed
YM1000 - Close Type or Fully Enclosed


Orange Grapple


SLG Specs
SLG-700 SLG-1000


SLG-3000



self load grab



SLG-12000
Large self loading grapple  ---  model SLG-12000
