LaBounty Shear Specifications
|
( 1 )
 |
| |
| |
( 2 )
 |
|
|
( 3 )
 |
|
|
( 4 )
 |
|
|
( 5 )
 |
|
|
( 6 )
 |
|
|
|
|
( 7 )
 |
( 8 )
 |

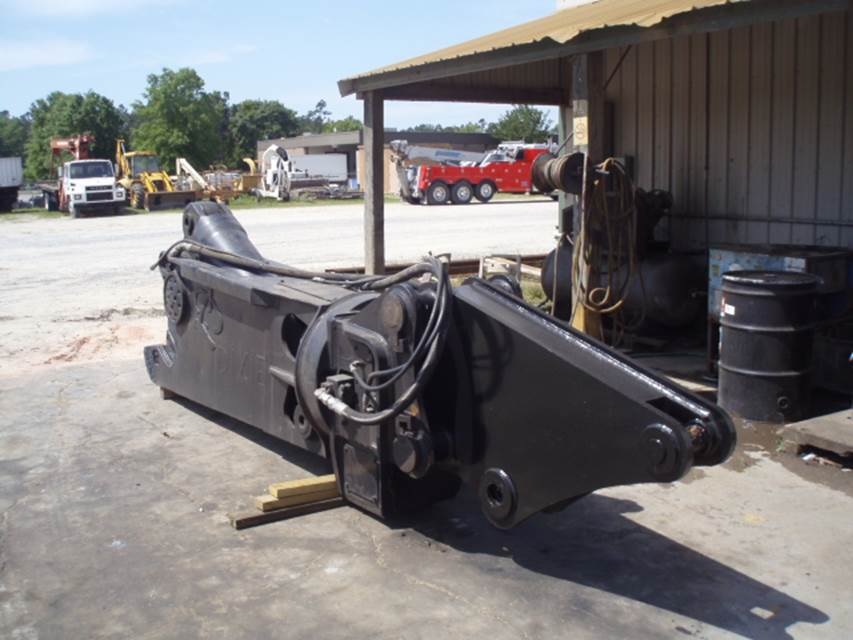

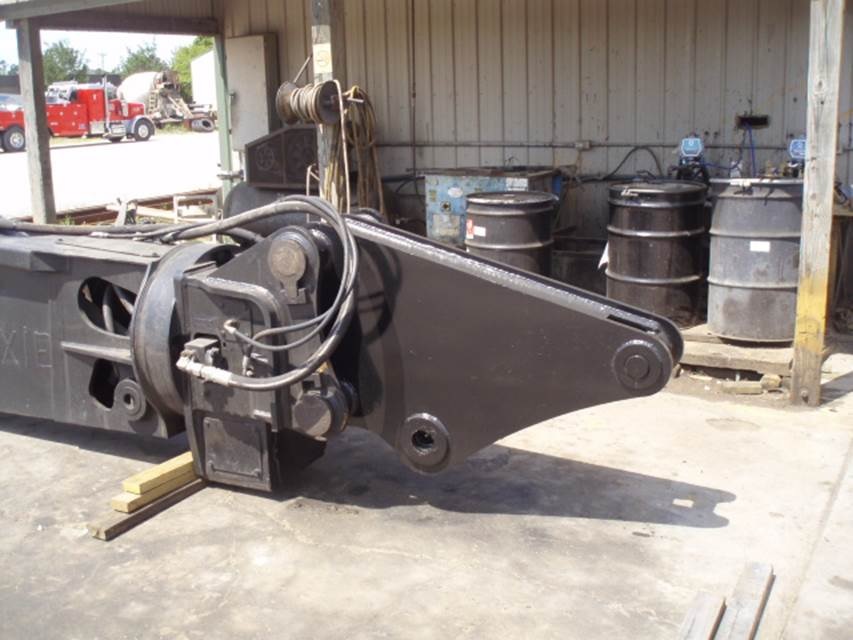

| Sample Adaptor on a LaBounty Shear that goes from 2nd to 3rd Member |
 |
| |
 |
| |
 |
| |
|
| |
 |
| |

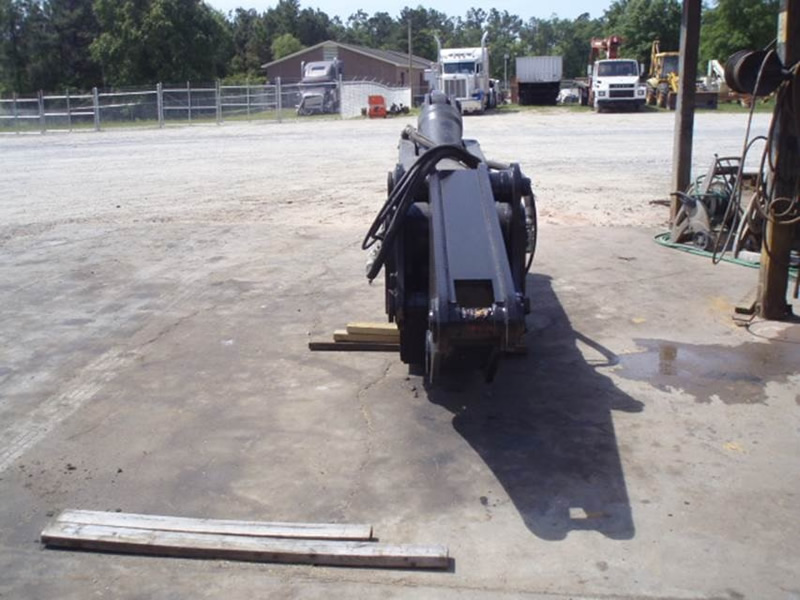

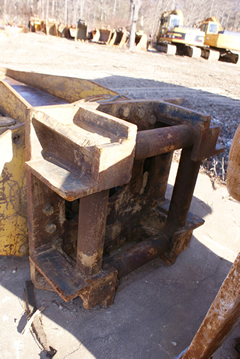

| Another sample of bracket that goes both ways |
 |
|
* Various hydraulic excavator shears available *
|
( 9 )
Former Models
| Model |
Excavator Class |
Weight |
Shear Opening |
Shear Depth |
Reach |
| MSD 3R |
3,600 lbs (Skid Steer) |
525 lbs |
9" |
8.5" |
3'-9" |
| MSD 7 |
6,000 lbs |
950 lbs |
10" |
11" |
4'-7" |
| MSD 7R |
7,500 lbs |
1,100 lbs |
10" |
11" |
5'-0" |
| MSD 15 |
15,000 lbs |
3,000 lbs |
18" |
20" |
6'-6" |
| MSD 15R |
20,000 lbs |
3,500 lbs |
18" |
20" |
8'-6" |
| MSD 30 |
27,000 lbs |
4,500 lbs |
22" |
24" |
7'-0" |
| MSD 30R |
38,000 lbs |
5,900 lbs |
22" |
24" |
10'-4" |
| MSD 40 |
40,000 lbs |
6,700 lbs |
27" |
29" |
8'-6" |
| MSD 40R |
50,000 lbs |
8,700 lbs |
27" |
29" |
12'-6" |
| MSD 50 |
50,000 lbs |
10,500 lbs |
32" |
34" |
9'-0" |
| MSD 50R |
70,000 lbs |
12,000 lbs |
32" |
34" |
13'-4" |
| MSD 70 |
70,000 lbs |
12,700 lbs |
35" |
37" |
10'-4" |
| MSD 70R |
96,000 lbs |
14,900 lbs |
35" |
37" |
14'-4" |
| MSD 100 |
90,000 lbs |
14,900 lbs |
38" |
39" |
11'-6" |
| MSD 100R |
110,000 lbs |
17,500 lbs |
38" |
39" |
16'-0" |
| MSD 140 |
125,000 lbs |
19,500 lbs |
44" |
45" |
13'-10" |
| MSD 140R |
150,000 lbs |
24,500 lbs |
44" |
45" |
18'-6" |
| MSD 160* |
150,000 lbs |
24,000 lbs |
43" |
46" |
15'-0" |
| Call us for pricing on all models. |
| * MSD 160 features a "stick" body with dual cyliders located on top of the shear stick. |
( 10 )
Old Models
| Model |
Excavator Class |
Weight |
Shear Opening |
Shear Depth |
Reach |
| MSD 105 |
6,000 lbs |
900 lbs |
10" |
11" |
4'-7" |
| MSD 105R |
7,500 lbs |
1,100 lbs |
10" |
11" |
5'-0" |
| MSD 108 |
15,000 lbs |
2,500 lbs |
14" |
16" |
6'-6" |
| MSD 108R |
18,000 lbs |
3,000 lbs |
14" |
16" |
7'-0" |
| MSD 112 |
35,000 lbs |
6,200 lbs |
22" |
23" |
8'-4" |
| MSD 112R |
45,000 lbs |
7,900 lbs |
22" |
23" |
11'-8" |
| MSD 116 |
46,000 lbs |
8,900 lbs |
26" |
29" |
11'-6" |
| MSD 116R |
65,000 lbs |
11,500 lbs |
27" |
29" |
13'-4" |
| MSD 200** |
200,000 lbs |
34,000 lbs |
51" |
57" |
17'-0" |
| MSD 220 |
85,000 lbs |
14,000 lbs |
33" |
39" |
12'-6" |
| MSD 220R |
96,000 lbs |
15,900 lbs |
32" |
38" |
15'-8" |
| MSD 220IS |
80,000 lbs |
13,000 lbs |
32" |
38" |
11'-6" |
| MSD 232 |
140,000 lbs |
25,000 lbs |
50" |
56" |
16'-0" |
| MSD 238 |
160,000 lbs |
26,000 lbs |
58" |
60" |
17'-0" |
| MSD 400** |
400,000 lbs |
58,000 lbs |
64" |
80" |
25'-0" |
| MSD 2219** |
150,000 lbs |
24,000 lbs |
43" |
46" |
15'-0" |
| Call us for pricing on all models. |
| ** Other special application shear models are available upon request.
The 2219, 200, and 400 models are made to order for extra heavy cutting
applications. |
( 11 )

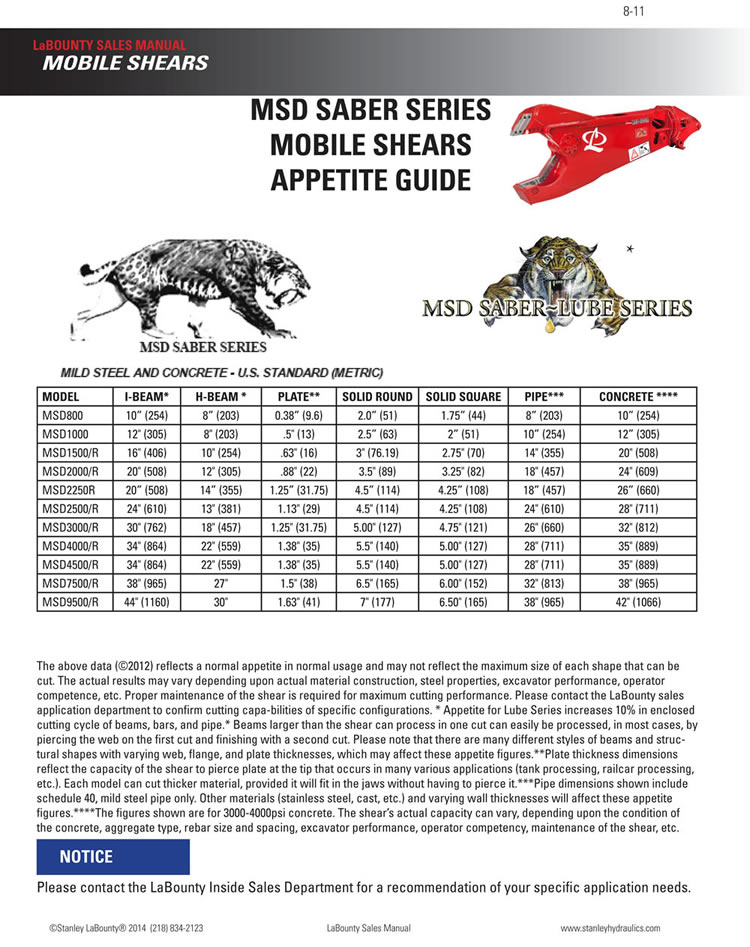

Appetite Guide
| Model |
Model |
I-Beam |
Plate |
Solid Round |
Pipe |
Concrete |
|
MSD 3 (R) |
6" |
3/16" |
1" |
4" |
6" |
| 105 |
MSD 7 (R) |
7" |
1/4" |
1.25" |
5" |
8" |
| 108 |
MSD 15 (R) |
9" |
3/8" |
1.75" |
8" |
12" |
|
MSD 30 (R) |
12" |
1/2" |
2" |
10" |
14" |
| 112 |
MSD 40 (R) |
15" |
9/16" |
2.5" |
14" |
18" |
| 116 |
MSD 50 (R) |
19" |
5/8" |
3" |
18" |
21" |
| 220 |
MSD 70 (R) |
22" |
7/8" |
3.5" |
20" |
23" |
| 224 |
MSD 100 (R) |
30" |
1" |
4" |
22" |
25" |
| 228 |
MSD 140 (R) |
32" |
1 1/4" |
5" |
26" |
29" |
| 2219 |
MSD 160 (R) |
36" |
1 1/2" |
6.5" |
28" |
28" |
|
MSD 200 (R) |
40" |
1 5/8" |
7" |
33" |
31" |
|
MSD 400 |
52" |
1 3/4" |
9" |
40" |
42" |
( 12 )  |
|
LaBounty MSD Mobile Shears are specifically designed for scrap processing, demolition work, and road and bridge reconstruction. Mobile Shears can cut a variety ot materials including H- and I- beams, railcars, plate, tanks, pipe, round stock, wire, rebar and concrete, brick or block. |
MSD Mobile Shears Feature four-way indexible blades, replacable wear parts for easy maintenance, and a patented design offering maximum cutting strength and reach with minimal weight. MSDR Rotating Mobile Shears feature a 360° continuous rotation severe-duty turntable. |
Built to last, LaBounty Mobile Shears are manufactured in the USA using abrasion resistant, high strength alloy steel for minimum weight and maximum durability and reach. |
| * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * |
| |
 |
| |
| |
 |
| LaBounty Mobile Wood Shear |
Specifications
| Model |
Excavator Class |
Approximate Weight |
Jaw Opening |
Jaw Depth |
| MWS 40 |
40-60,000 lbs |
3,000 lbs |
30"-40" |
29" |
| MWS 80 |
70-95,000 lbs |
5,100 lbs |
50"-60" |
41" |
| MWS 154 |
50-65,000 lbs |
7,400 lbs |
30"-40" |
54" |
| Call us for pricing on all models. |
LaBounty MWS Mobile Wood Shears. Ideal for applications involving the downsizing of all wood materials including tree stumps, logs, railroad ties, wood demolition debris and other oversized wood products. These attachments are ideal for wood waste recycling and land clearing operations. |
Mobile Wood Shears Feature weld-in replacable, hardened steel cutting blades that easily split large stumps and oversized material into small pieces. In addition, the LaBounty design features the maximum cutting force and maximum reach with minimum weight, reducing base machine movement and increasing operator safety. |
No Additional Hydraulics Required. The MWS 40 and MWS 80 pin on in place of the excavator bucket, eliminating the need for additional hydraulics. A mounting pad is welded to the bottom of the excavator arm which then attaches to the position arm and the shear lower jaw. |
Built to Last, LaBounty Mobile Shears are manufactured in the USA using abrasion resistant, high strength alloy steel for minimum weight and maximum durability and reach. |
 |
( 1 )
|
| |
| |
( 2 )
|
|
|
( 3 )
|
|
|
( 4 )
|
|
|
( 5 )
|
|
|
|
|
( 6 )
|
( 7 )
|

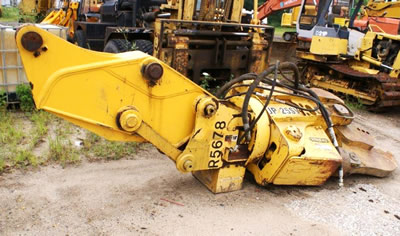

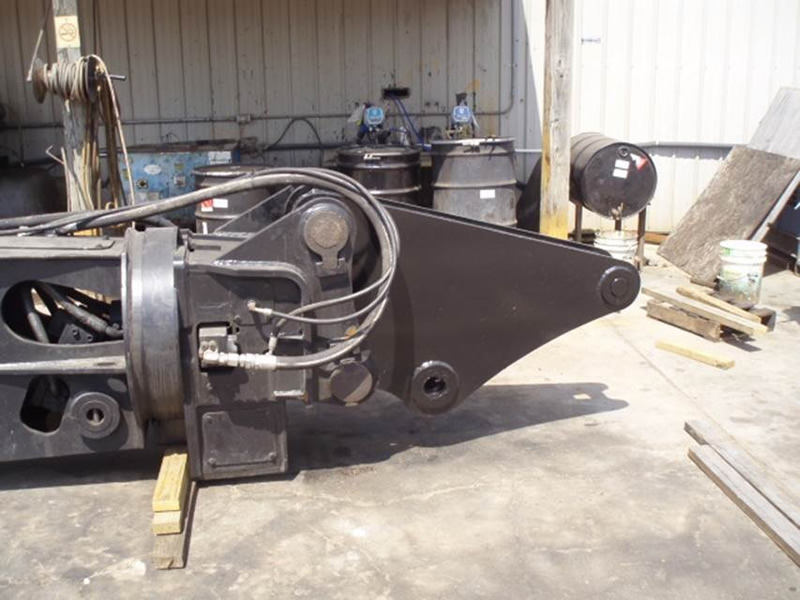

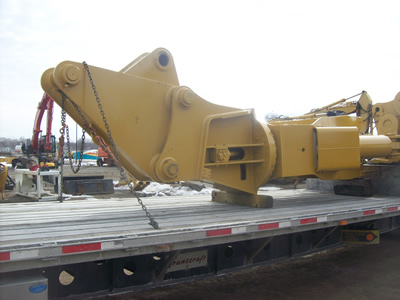

| Sample Adapter on a LaBounty Shear that goes from 2nd to 3rd Member |
|
| |
|
| |
|
| |
|
|
| |
|
| |

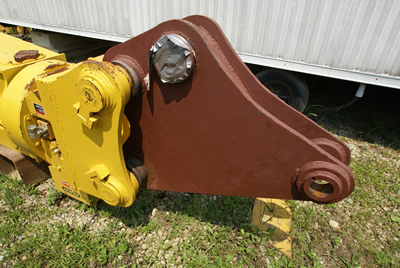

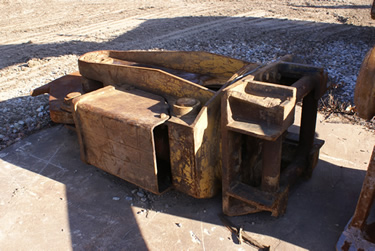

| LaBounty adapter bracket |
 |
| |
| |
|
(Click on the above 4 pictures to enlarge)
|
| |
| |
| Another sample of bracket that goes both ways |
|
| |
| |
|
|
* Various hydraulic excavator shears available *
|
( 8 )
Former Models
| Model |
Excavator Class |
Weight |
Shear Opening |
Shear Depth |
Reach |
| MSD 3R |
3,600 lbs (Skid Steer) |
525 lbs |
9" |
8.5" |
3'-9" |
| MSD 7 |
6,000 lbs |
950 lbs |
10" |
11" |
4'-7" |
| MSD 7R |
7,500 lbs |
1,100 lbs |
10" |
11" |
5'-0" |
| MSD 15 |
15,000 lbs |
3,000 lbs |
18" |
20" |
6'-6" |
| MSD 15R |
20,000 lbs |
3,500 lbs |
18" |
20" |
8'-6" |
| MSD 30 |
27,000 lbs |
4,500 lbs |
22" |
24" |
7'-0" |
| MSD 30R |
38,000 lbs |
5,900 lbs |
22" |
24" |
10'-4" |
| MSD 40 |
40,000 lbs |
6,700 lbs |
27" |
29" |
8'-6" |
| MSD 40R |
50,000 lbs |
8,700 lbs |
27" |
29" |
12'-6" |
| MSD 50 |
50,000 lbs |
10,500 lbs |
32" |
34" |
9'-0" |
| MSD 50R |
70,000 lbs |
12,000 lbs |
32" |
34" |
13'-4" |
| MSD 70 |
70,000 lbs |
12,700 lbs |
35" |
37" |
10'-4" |
| MSD 70R |
96,000 lbs |
14,900 lbs |
35" |
37" |
14'-4" |
| MSD 100 |
90,000 lbs |
14,900 lbs |
38" |
39" |
11'-6" |
| MSD 100R |
110,000 lbs |
17,500 lbs |
38" |
39" |
16'-0" |
| MSD 140 |
125,000 lbs |
19,500 lbs |
44" |
45" |
13'-10" |
| MSD 140R |
150,000 lbs |
24,500 lbs |
44" |
45" |
18'-6" |
| MSD 160* |
150,000 lbs |
24,000 lbs |
43" |
46" |
15'-0" |
| Call us for pricing on all models. |
| * MSD 160 features a "stick" body with dual cyliders located on top of the shear stick. |
( 9 )
Old Models
| Model |
Excavator Class |
Weight |
Shear Opening |
Shear Depth |
Reach |
| MSD 105 |
6,000 lbs |
900 lbs |
10" |
11" |
4'-7" |
| MSD 105R |
7,500 lbs |
1,100 lbs |
10" |
11" |
5'-0" |
| MSD 108 |
15,000 lbs |
2,500 lbs |
14" |
16" |
6'-6" |
| MSD 108R |
18,000 lbs |
3,000 lbs |
14" |
16" |
7'-0" |
| MSD 112 |
35,000 lbs |
6,200 lbs |
22" |
23" |
8'-4" |
| MSD 112R |
45,000 lbs |
7,900 lbs |
22" |
23" |
11'-8" |
| MSD 116 |
46,000 lbs |
8,900 lbs |
26" |
29" |
11'-6" |
| MSD 116R |
65,000 lbs |
11,500 lbs |
27" |
29" |
13'-4" |
| MSD 200** |
200,000 lbs |
34,000 lbs |
51" |
57" |
17'-0" |
| MSD 220 |
85,000 lbs |
14,000 lbs |
33" |
39" |
12'-6" |
| MSD 220R |
96,000 lbs |
15,900 lbs |
32" |
38" |
15'-8" |
| MSD 220IS |
80,000 lbs |
13,000 lbs |
32" |
38" |
11'-6" |
| MSD 232 |
140,000 lbs |
25,000 lbs |
50" |
56" |
16'-0" |
| MSD 238 |
160,000 lbs |
26,000 lbs |
58" |
60" |
17'-0" |
| MSD 400** |
400,000 lbs |
58,000 lbs |
64" |
80" |
25'-0" |
| MSD 2219** |
150,000 lbs |
24,000 lbs |
43" |
46" |
15'-0" |
| Call us for pricing on all models. |
| ** Other special application shear models are available upon request.
The 2219, 200, and 400 models are made to order for extra heavy cutting
applications. |
( 10 )

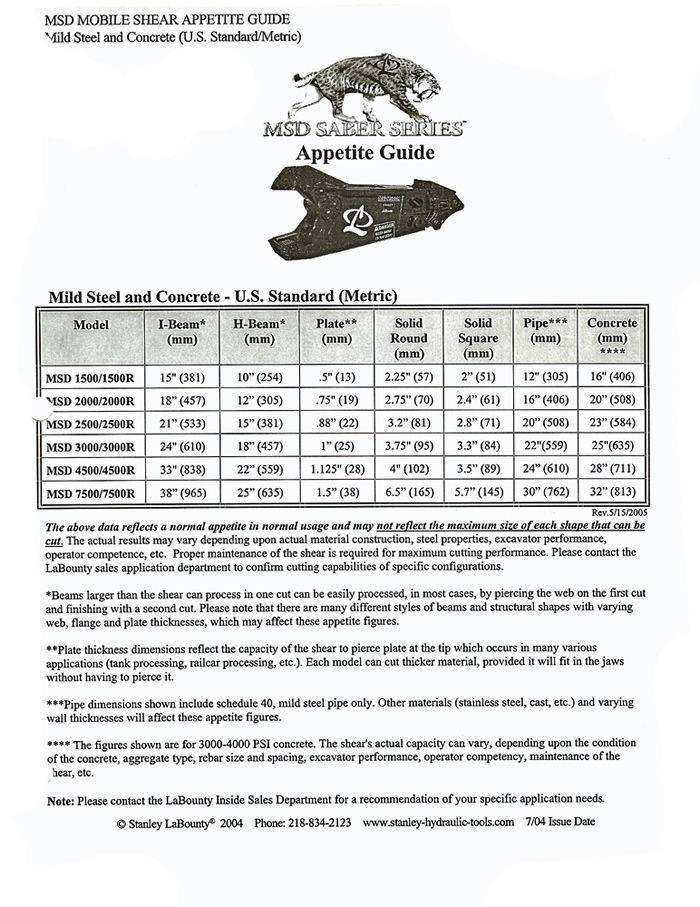

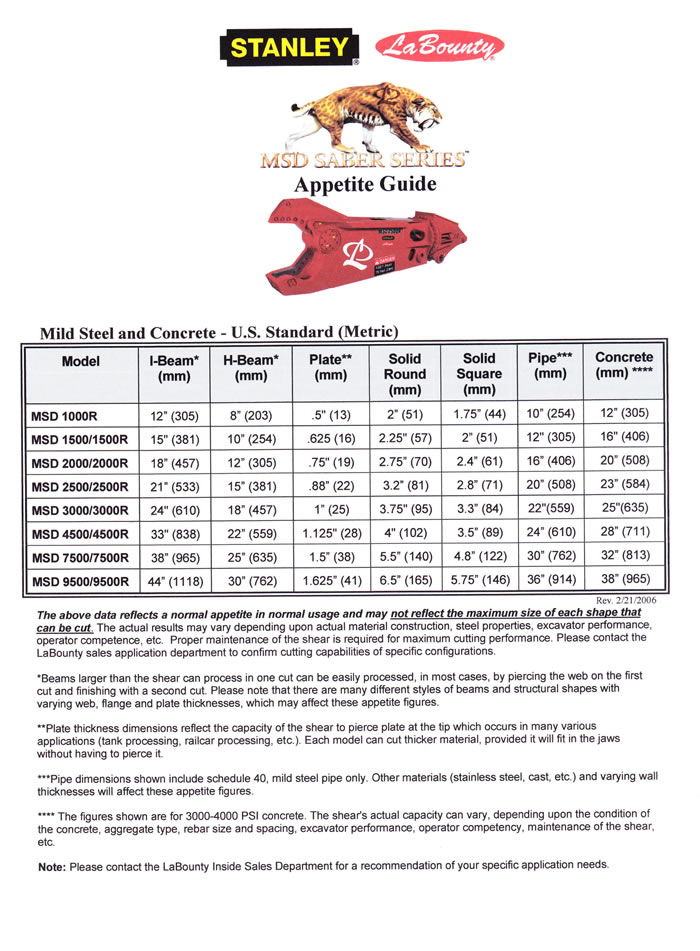

Appetite Guide
| Model |
Model |
I-Beam |
Plate |
Solid Round |
Pipe |
Concrete |
|
MSD 3 (R) |
6" |
3/16" |
1" |
4" |
6" |
| 105 |
MSD 7 (R) |
7" |
1/4" |
1.25" |
5" |
8" |
| 108 |
MSD 15 (R) |
9" |
3/8" |
1.75" |
8" |
12" |
|
MSD 30 (R) |
12" |
1/2" |
2" |
10" |
14" |
| 112 |
MSD 40 (R) |
15" |
9/16" |
2.5" |
14" |
18" |
| 116 |
MSD 50 (R) |
19" |
5/8" |
3" |
18" |
21" |
| 220 |
MSD 70 (R) |
22" |
7/8" |
3.5" |
20" |
23" |
| 224 |
MSD 100 (R) |
30" |
1" |
4" |
22" |
25" |
| 228 |
MSD 140 (R) |
32" |
1 1/4" |
5" |
26" |
29" |
| 2219 |
MSD 160 (R) |
36" |
1 1/2" |
6.5" |
28" |
28" |
|
MSD 200 (R) |
40" |
1 5/8" |
7" |
33" |
31" |
|
MSD 400 |
52" |
1 3/4" |
9" |
40" |
42" |
( 11 )
LaBounty MSD Mobile Shears are specifically designed for scrap processing, demolition work, and road and bridge reconstruction. Mobile Shears can cut a variety ot materials including H- and I- beams, railcars, plate, tanks, pipe, round stock, wire, rebar and concrete, brick or block. |
MSD Mobile Shears Feature four-way indexible blades, replacable wear parts for easy maintenance, and a patented design offering maximum cutting strength and reach with minimal weight. MSDR Rotating Mobile Shears feature a 360° continuous rotation severe-duty turntable. |
Built to last, LaBounty Mobile Shears are manufactured in the USA using abrasion resistant, high strength alloy steel for minimum weight and maximum durability and reach. |
( 12 )
LaBounty Bucket Linkage Shears
|
Specifications
| Model |
Excavator Class |
Weight |
Jaw Opening |
Jaw Depth |
| BLS 40 |
40-65,000 lbs |
2,900 lbs |
15-18" |
18" |
| BLS 80 |
70-100,000 lbs |
3,500 lbs |
17-20" |
19.5" |
| Call us for pricing on all models. |
| BLS Bucket Linkage Shears are designed for cutting light to medium sized material such as structural steel, pipe, rebar, tires and concrete. Ideal applications for BLS Shears include light scrap processing and demolition clean up. |
· BLS Shears pin on in place of an excavator bucket, eliminating the need for additional hydraulics. |
| · BLS mounts may be configured to work on several excavator makes and models. |
 |
