| FEATURES |
| · Constructed with high-strength steel |

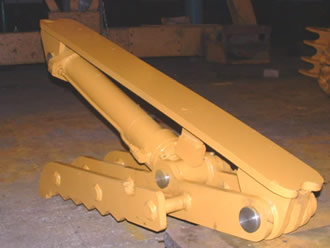

| · Hydraulics can be added |
| · Serrated teeth for a positive grip |
| · Reinforced bracing for added strength |
| · Double welded for added reinforcement |
| · Folds out of the way for digging |
| · Easy to install |
| · Shipped fully assembled |
| · Can manufacture any width or length needed |
 |
 |
| Model | EX 824 | EX 830 | EX 1230 | EX 1240 | EX 1850 | EX 2644 | EX 3260 |
|---|---|---|---|---|---|---|---|
| Excavator Class (lbs) | 6000 - 9000 | 6000 - 9000 | 9000 - 12000 | 12000 - 16000 | 23000 - 39000 | 28000 - 45000 | 45000 - 65000 |
| Size | 8"x24" | 8"x30" | 12"x30" | 12"x40" | 18"x50" | 26"x52" | 32"x60" |
| Weight (lbs) | 110 | 120 | 140 | 250 | 525 | 800 | 1400 |
| Fingers | 2 | 2 | 2 | 2 | 4 | 3 | 4 |
| Price | P.O.R. | P.O.R. | P.O.R. | P.O.R. | P.O.R. | P.O.R. | P.O.R. |
 |
|
 |
 |
| Model | EX 2717 | EX 2442 | EX 2644 | EX 3446 |
|---|---|---|---|---|
| Excavator Class (lbs) | 8 to 20 K | 18 to 35 K | 28 to 55 K | 60 to 80 K |
| Weight (lbs) | 270 | 650 | 800 | 1250 |
| Tines | 3 | 3 | 3 | 3 |
| Width (Inches) | 17 | 24 | 26 | 34 |
 |
